Receipt layouts

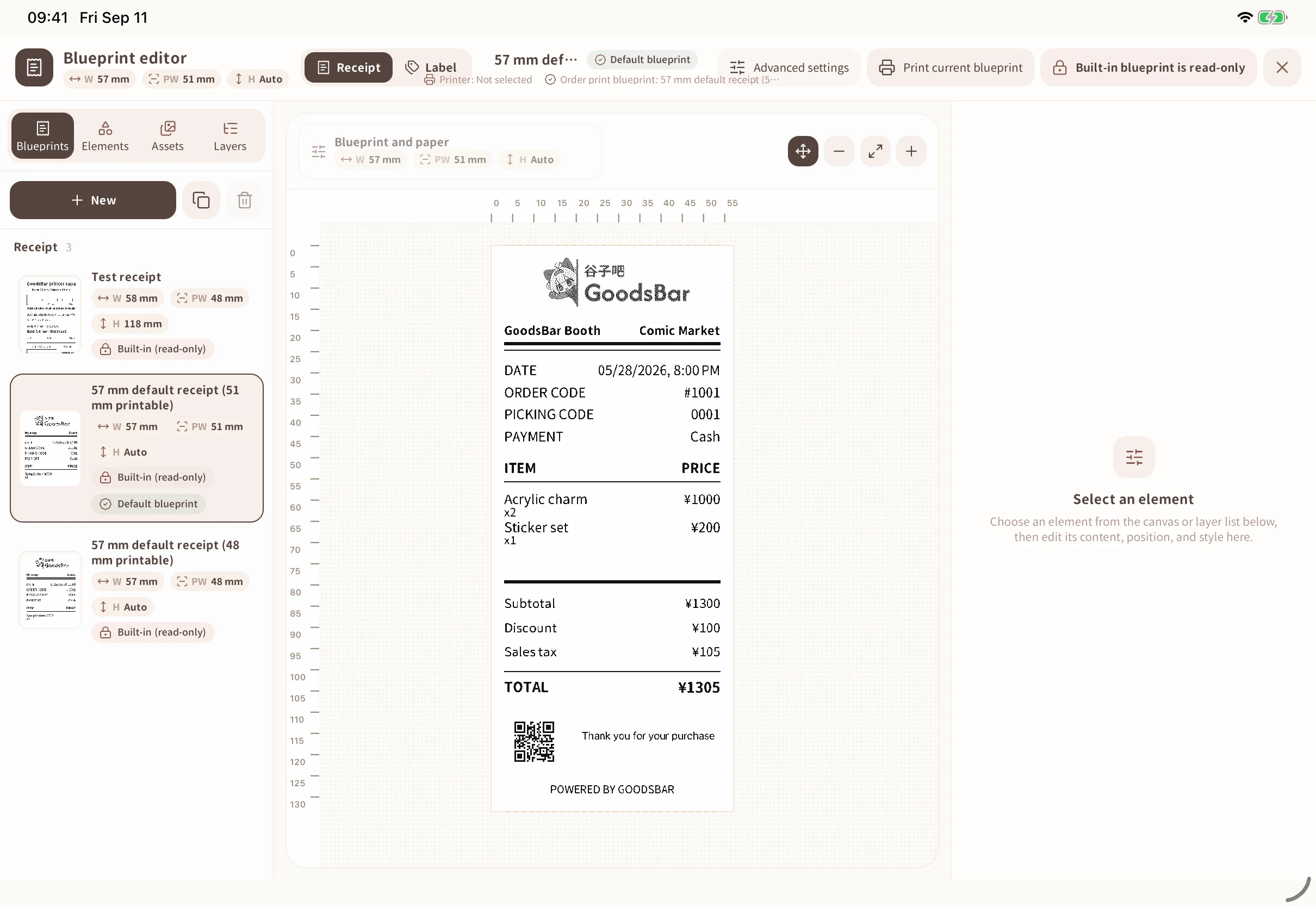

Open Print settings → Receipt template design, or the toolbox entry.

Click to enlarge

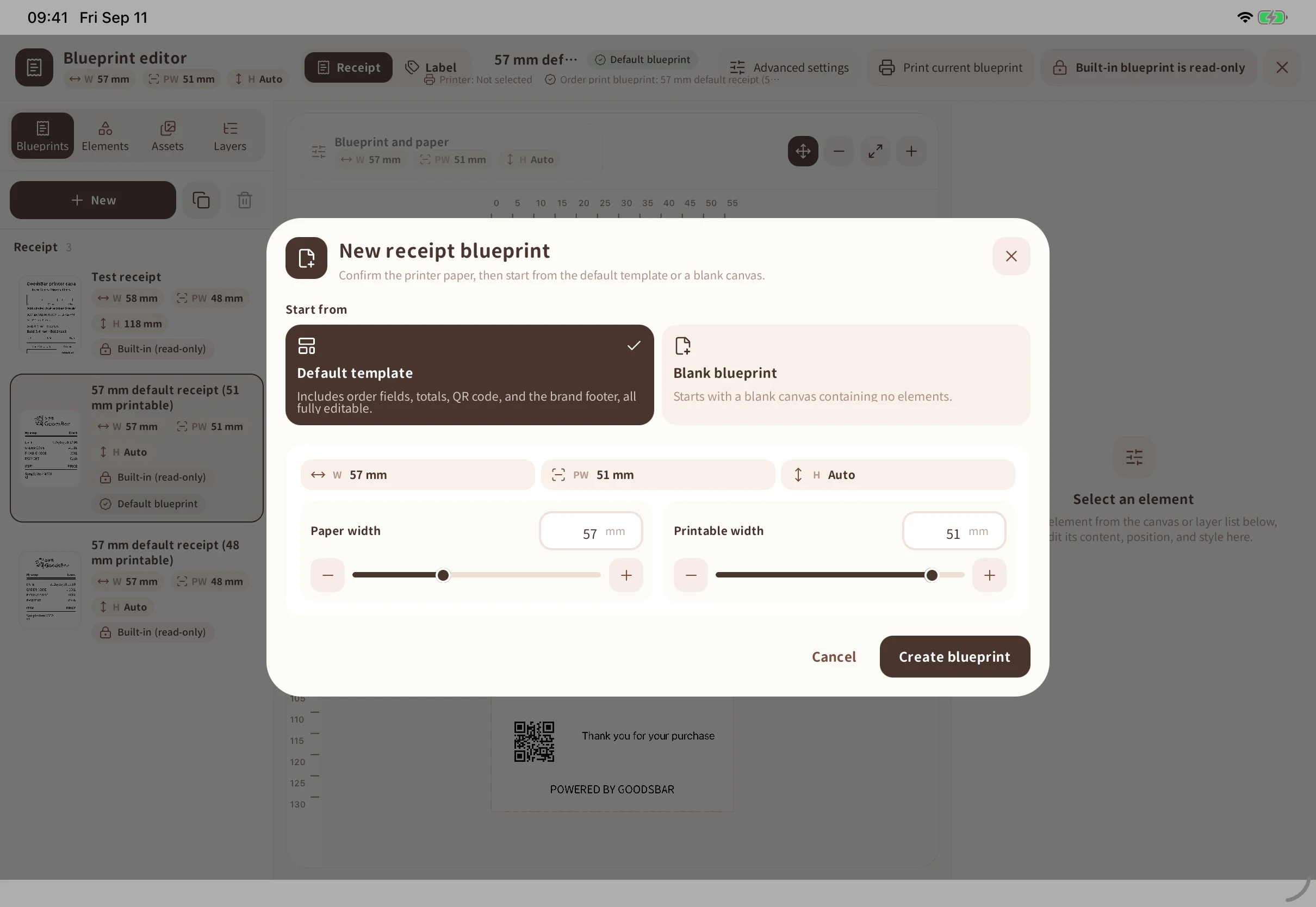

Duplicate a built-in template or create from default/blank. Built-in elements, layers, and asset actions remain read-only until working in a copy.

Click to enlarge

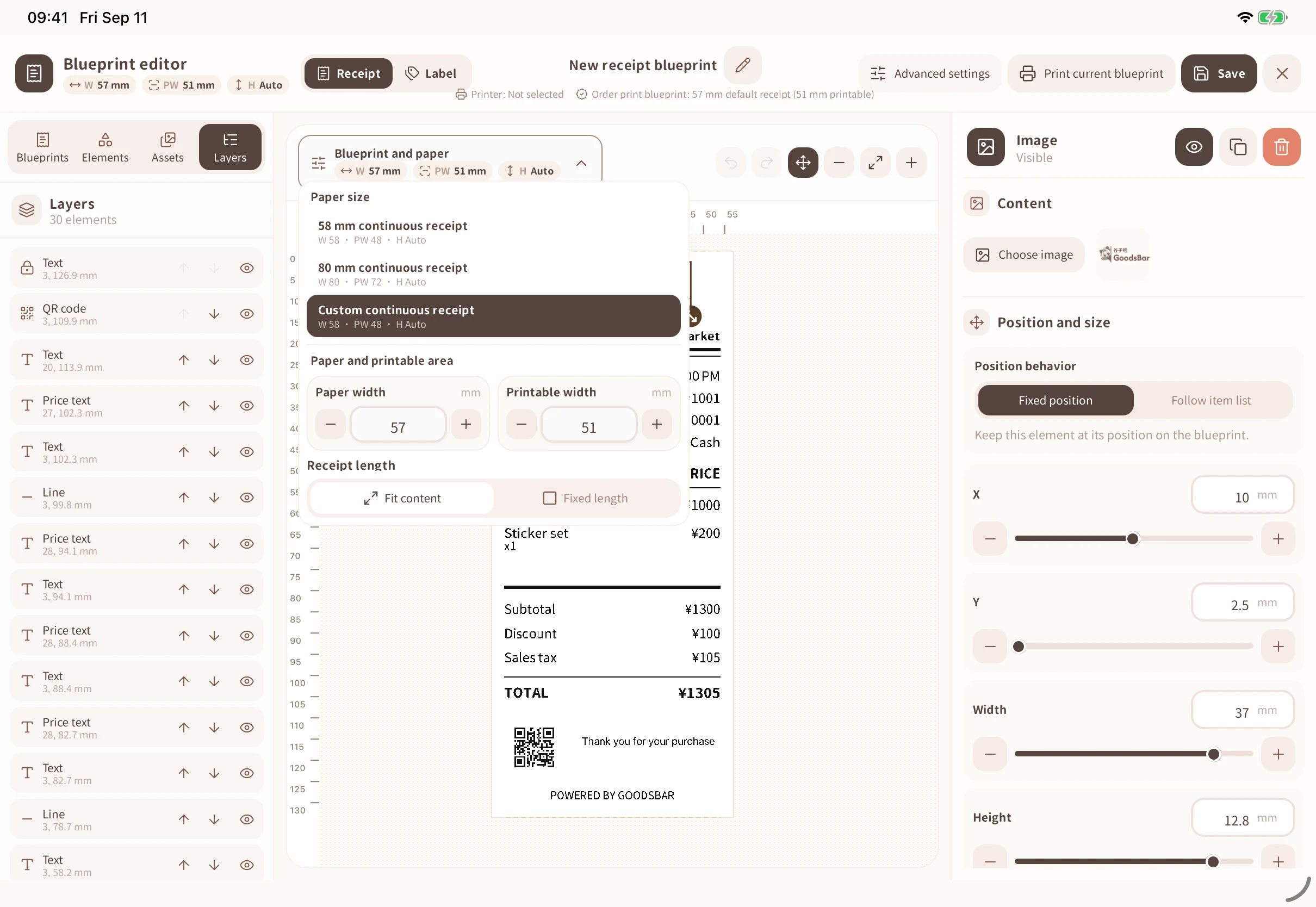

Check paper width versus printable width. Choose auto-fit content or fixed length; automatic length suits varying order sizes.

Click to enlarge

Save and rename with size/use, such as 57 mm — everyday receipt. Reopen it in custom templates. Save before making it default.

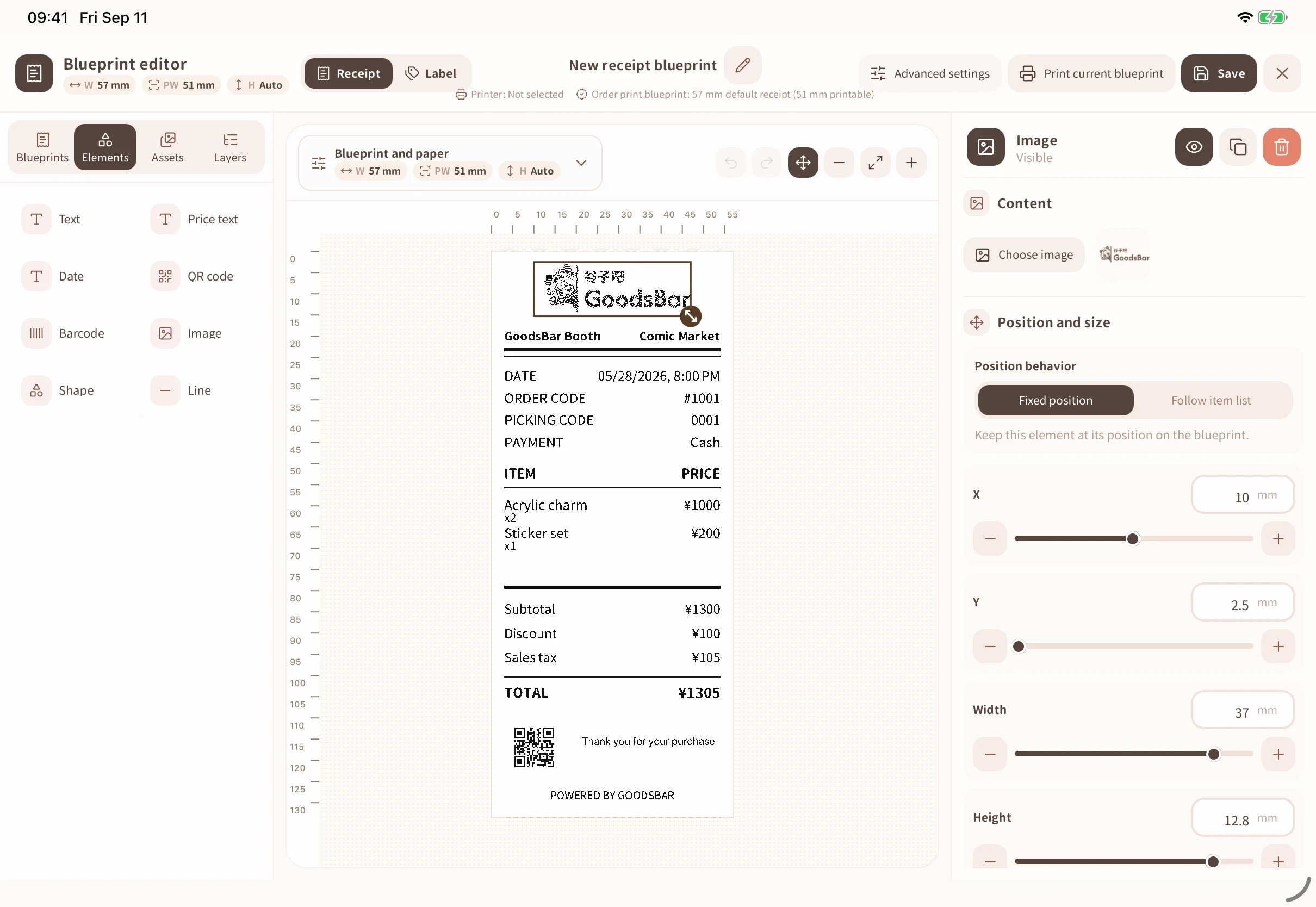

Choose text, price text, date, QR, barcode, image, shape, or line in Elements. Adjust spacing for whitespace. The new object and its properties appear.

Click to enlarge

Edit X, Y, width, and height in millimeters. QR uses a single size to stay square; image resizing preserves aspect ratio.

Align left/center/right or top/middle/bottom against the paper, then rotate, mirror, or duplicate as needed. Move duplicates to avoid overlap.

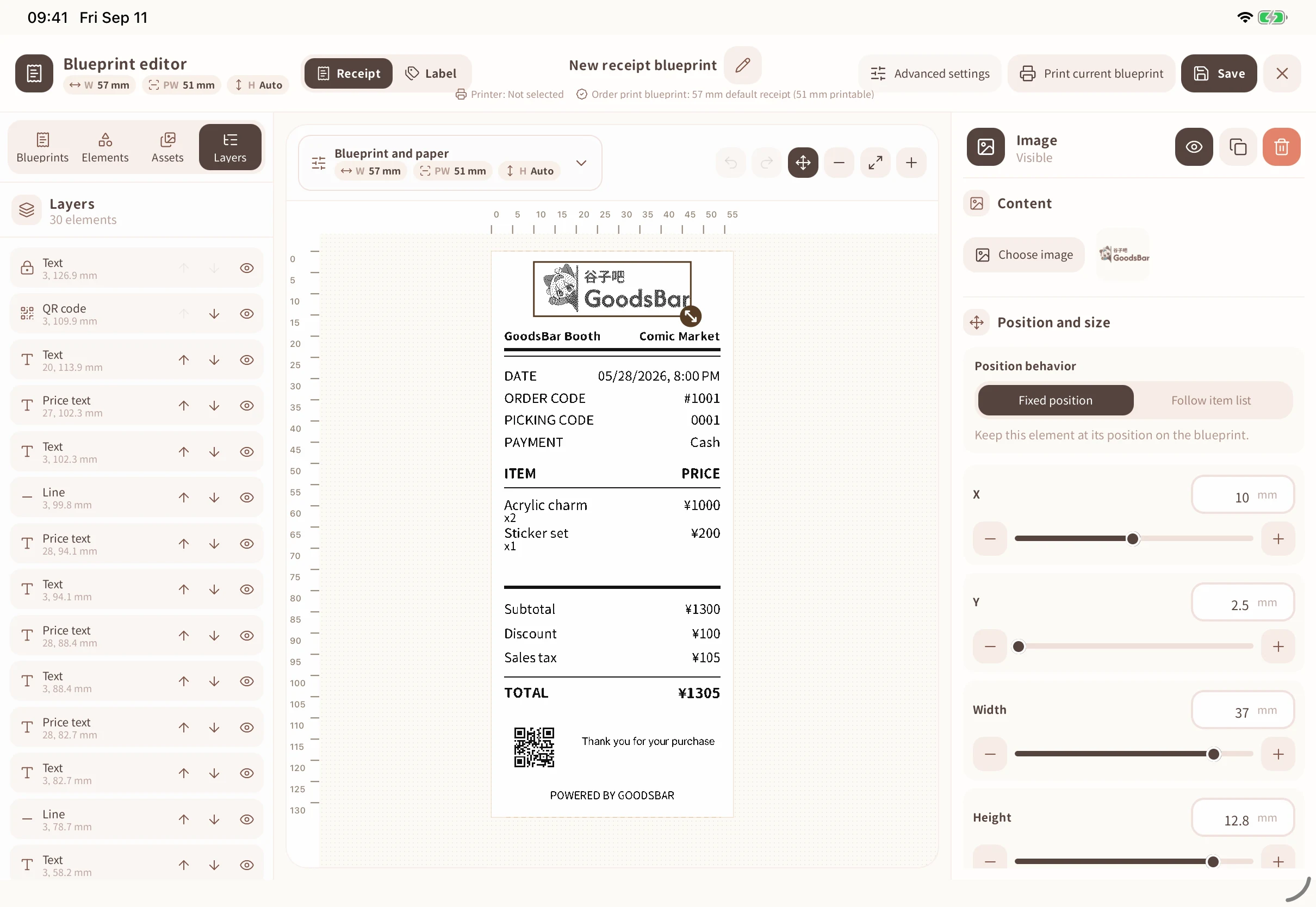

Select overlapping objects in Layers, move up/down a layer, and use the eye to hide/show. Locked system-managed elements cannot be selected, hidden, or reordered.

Click to enlarge

Verify the selection and delete from properties or layers. Duplicate first if keeping a copy; undo immediately after a mistaken edit.

Zoom, show rulers, and fit to screen to inspect boundaries. Use undo and redo for edit mistakes.

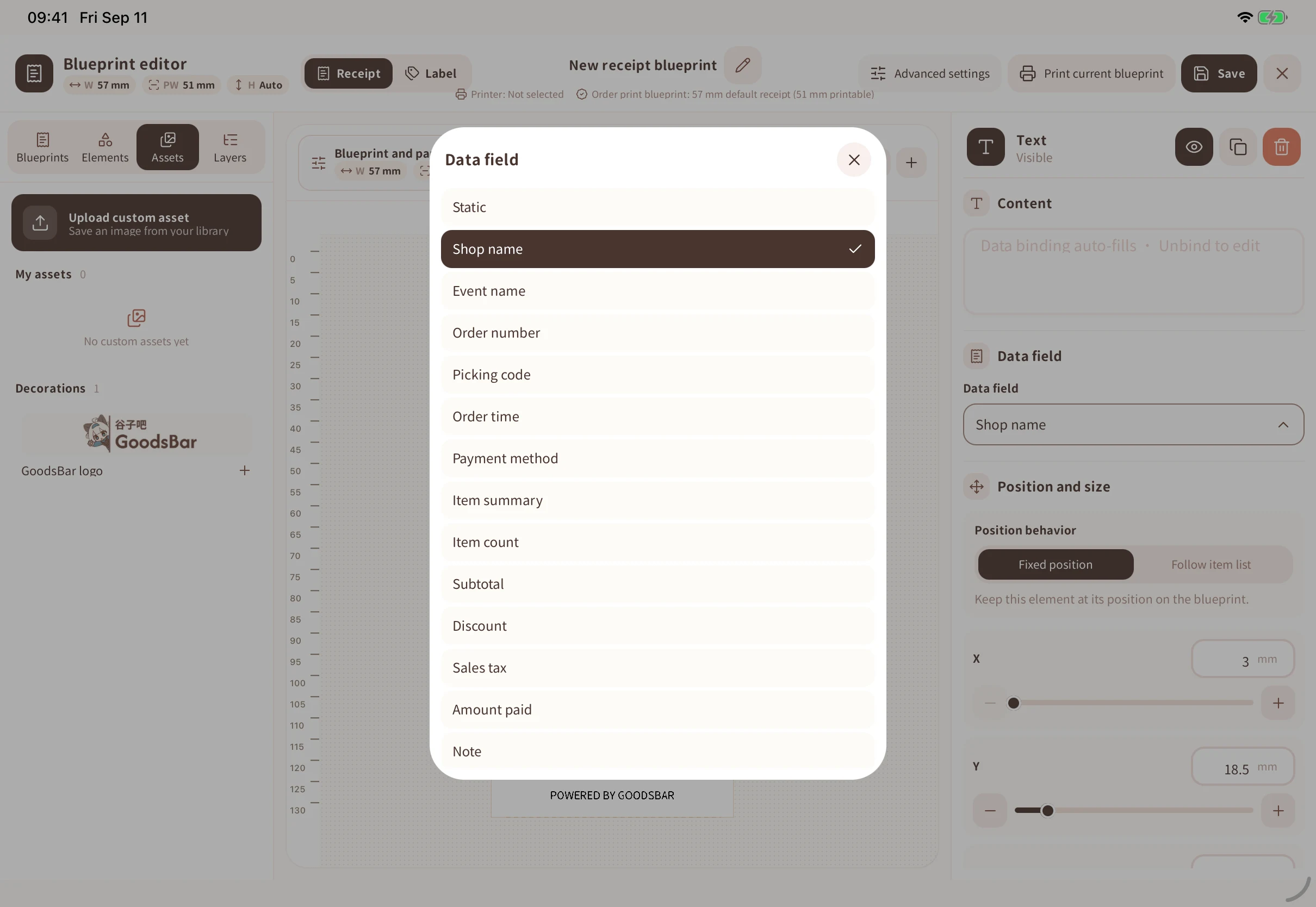

Select text or a code and bind shop, event, order number, pickup code, time, payment, product summary, quantity, subtotal, discount, tax, paid total, or note. Real order data replaces previews when printing.

Click to enlarge

For a slogan or URL, choose unbound and enter content. Bound content fields cannot be edited directly.

Choose name/price/quantity or name/quantity with prices hidden.

For a supported dynamic list, set totals or footers after it to follow the product list; use fixed position for titles/decorations. If absent, check the template type rather than looking for the switch on a blank canvas.

Bind an order QR to order content, or use a fixed promotional URL. A promotional QR is not proof of payment.

Start with small, body, bold body, heading, or large heading, then adjust font, size, and weight.

Set line/letter spacing and alignment, enable wrapping, and optionally reverse white-on-black. Verify reversed output on thermal paper.

Choose black-and-white, diffusion, or halftone, and whether the image participates in layout or overlays it.

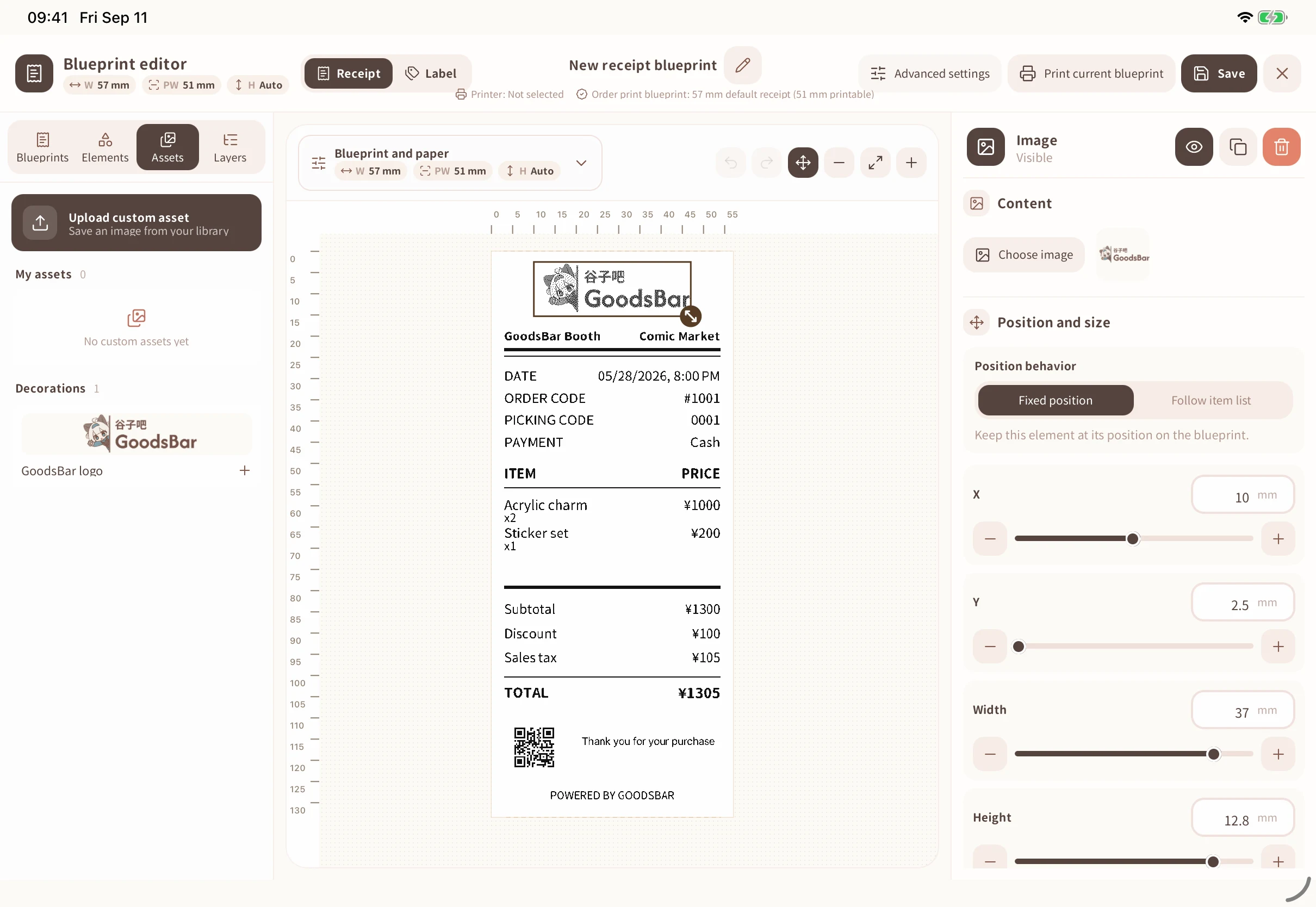

Add the built-in GoodsBar logo with its plus button. Upload your own logo, border, or pattern from photos to the library, then add it to the canvas. Removing a library asset does not delete elements already placed.

Click to enlarge

Set line width and, for shapes, fill. Use outlines or solid blocks and arrange layers to keep text visible.

Choose a barcode format compatible with the content, bar width, and readable text; set QR error correction. Leave quiet margins and test scan. EAN/UPC have length requirements and cannot arbitrarily replace Code 128.

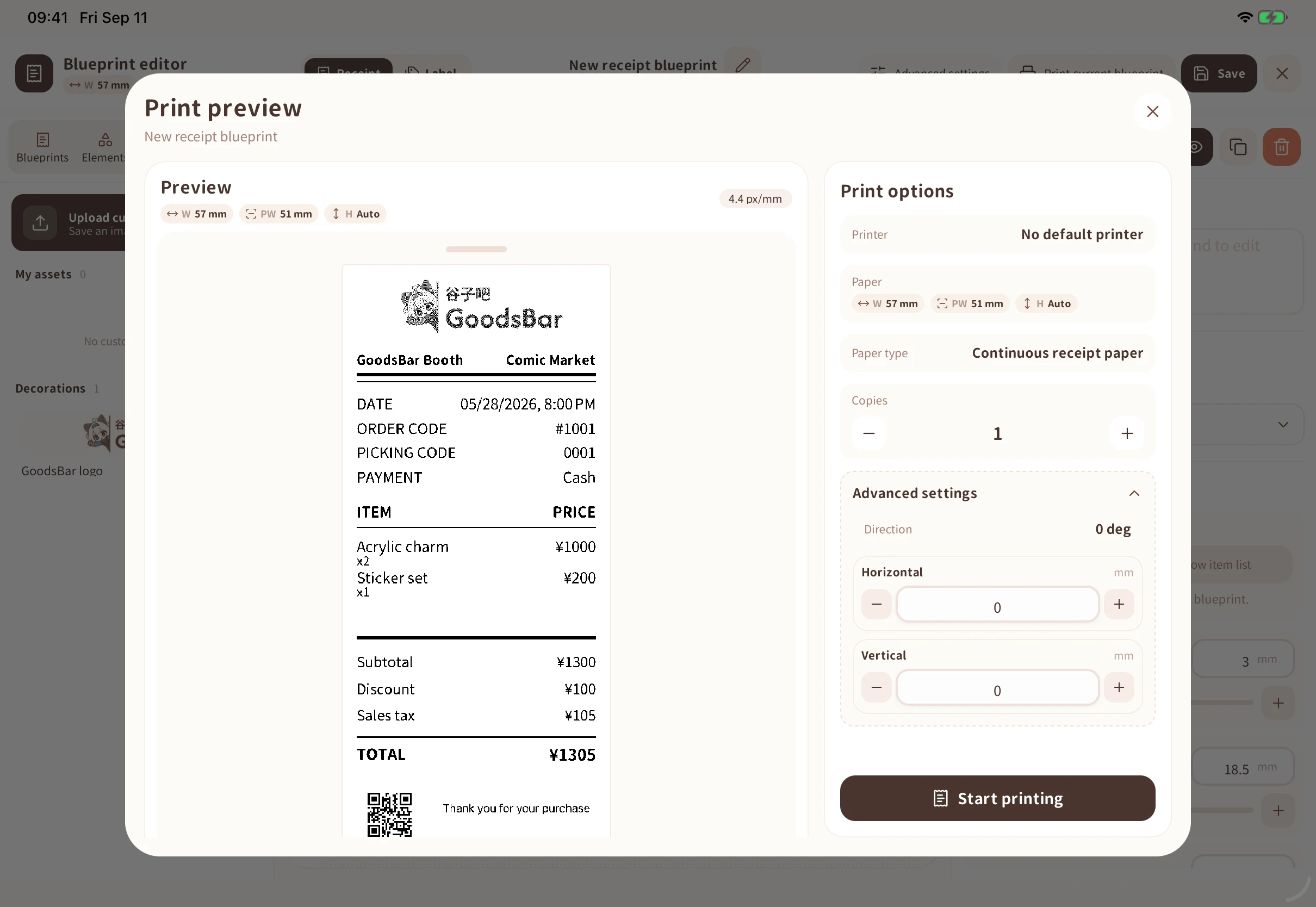

Use the top printer icon. Check device, paper, copies, orientation, and offsets; supported models also offer density/speed.

Click to enlarge

Start printing and check borders, wrapping, fields, and QR. Return to edit and save any corrections.

Save, then set as default. Resolve incompatibility by changing paper or the default printer. Check the default badge.

Complete a demo order, print or save its digital receipt, then reprint from history to compare data.

Check both at the top. Use advanced settings for device parameters; add a printer first if missing. Switch receipt/label purpose at the top to inspect each separately.

Select an unused custom template and confirm deletion. Built-ins cannot be deleted. Element undo cannot restore an entire deleted template; keep a saved copy first.
